$41,140.00
| Size (CM) | 2700x1700x360 |
|---|---|
| L (CM) | 2700 |
| W (CM) | 1700 |
| H (CM) | 360 |
| Size (FT) | 61.5×32.8×9.2 |
| L (FT) | 61.5 |
| W (FT) | 32.8 |
| H (FT) | 9.2 |
| Age Group |

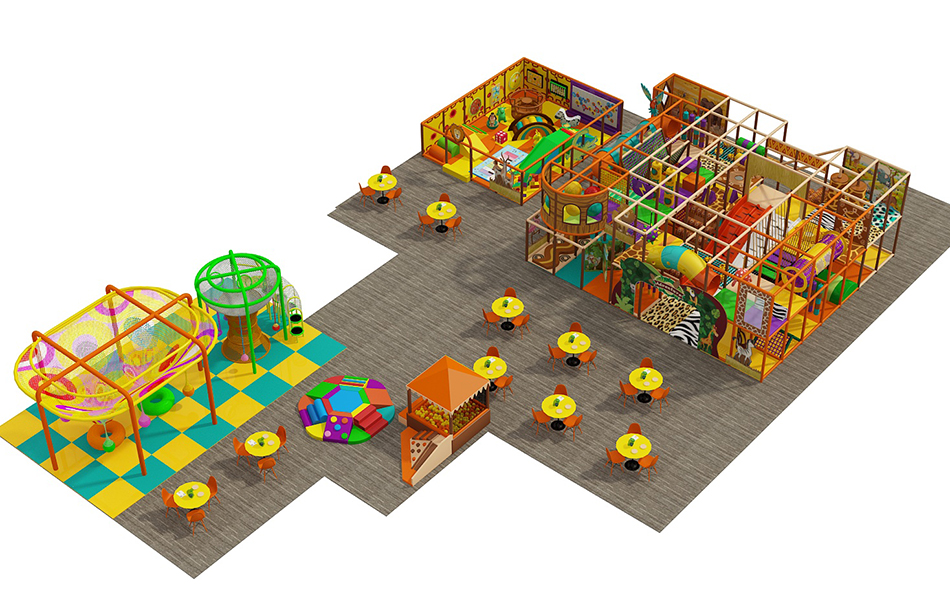

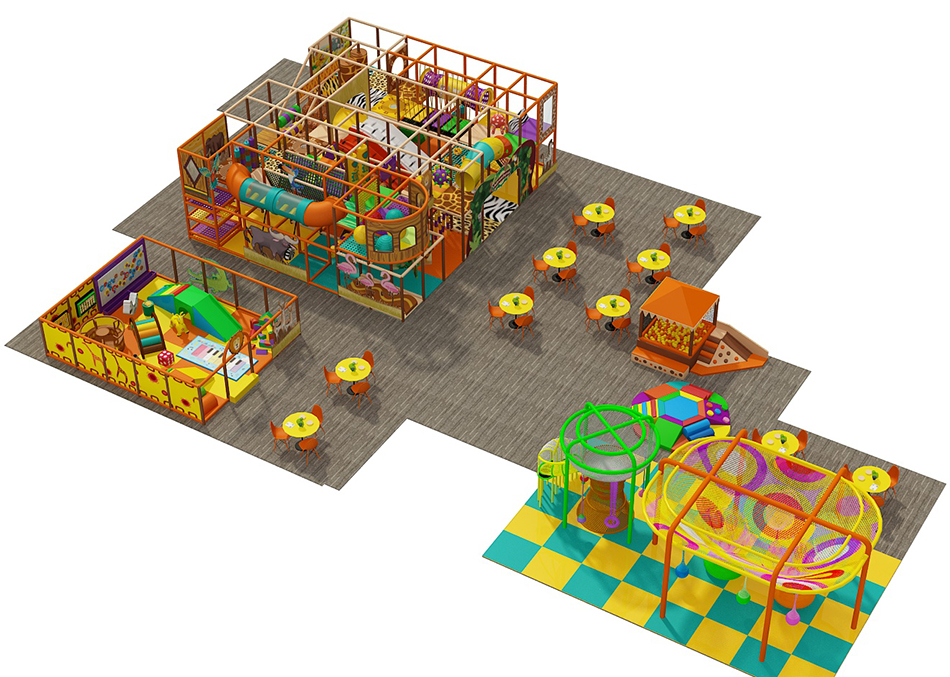

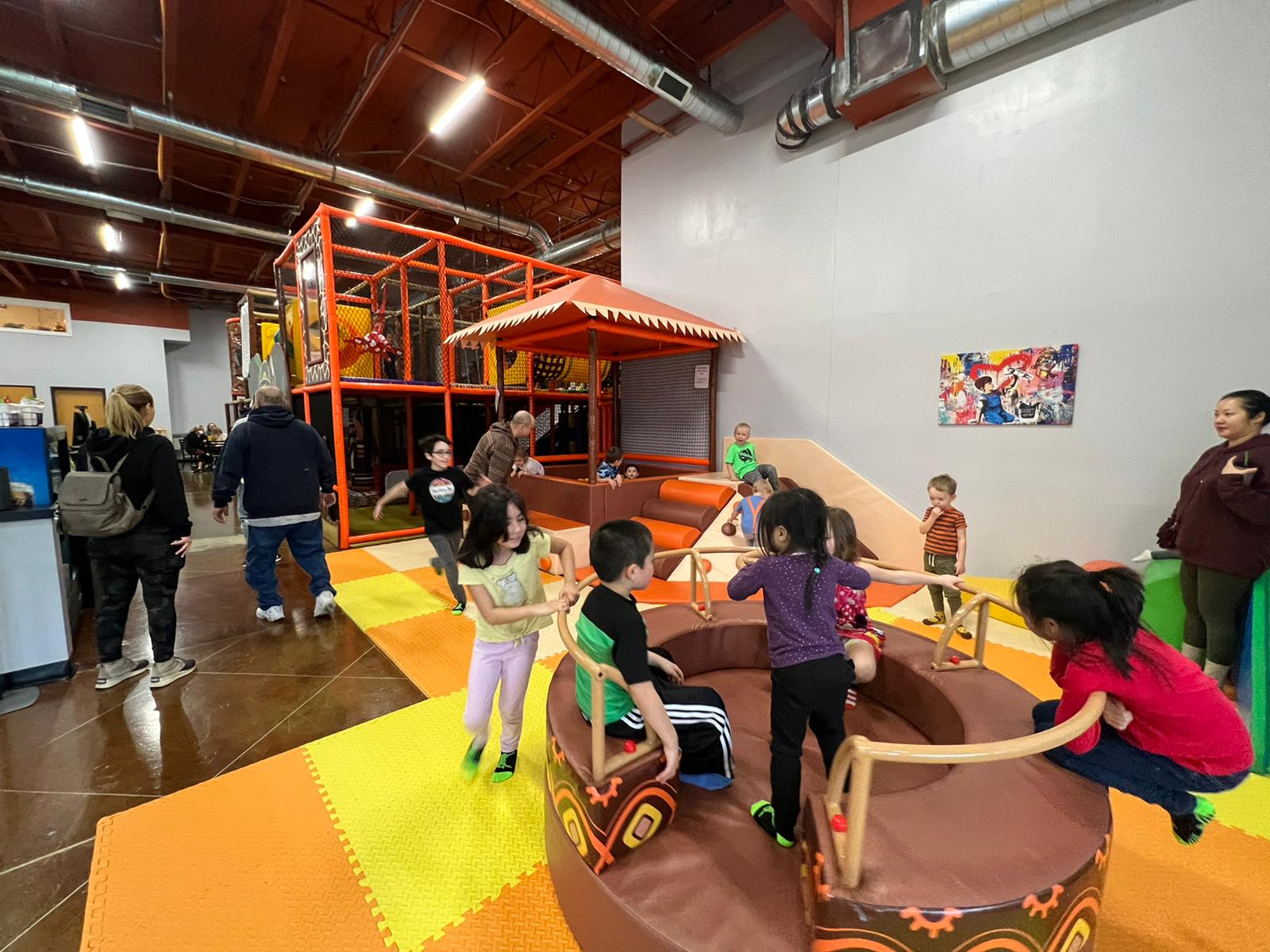

The concept separates a framed play structure from smaller floor-level activities and a seating area. Bluejayset lists this model for custom equipment planning. Confirm the supplied features against a current drawing and itemized quote.
The listed height is 9.2 ft. Treat that as an equipment measurement to verify, not a promise that a 9.2-foot room is adequate.
Listed dimensions describe the catalog model. Confirm the installed footprint and required surrounding space for your site. Age categories do not replace the instructions for individual activities.
Send a plan showing the lowest beams, ducts, sprinklers and lights. Ask the supplier to confirm the highest installed equipment point and all required clearances.
Different parts of the layout may fit beneath different ceiling zones. Have the final arrangement reviewed before assuming the entire room has the same usable height.

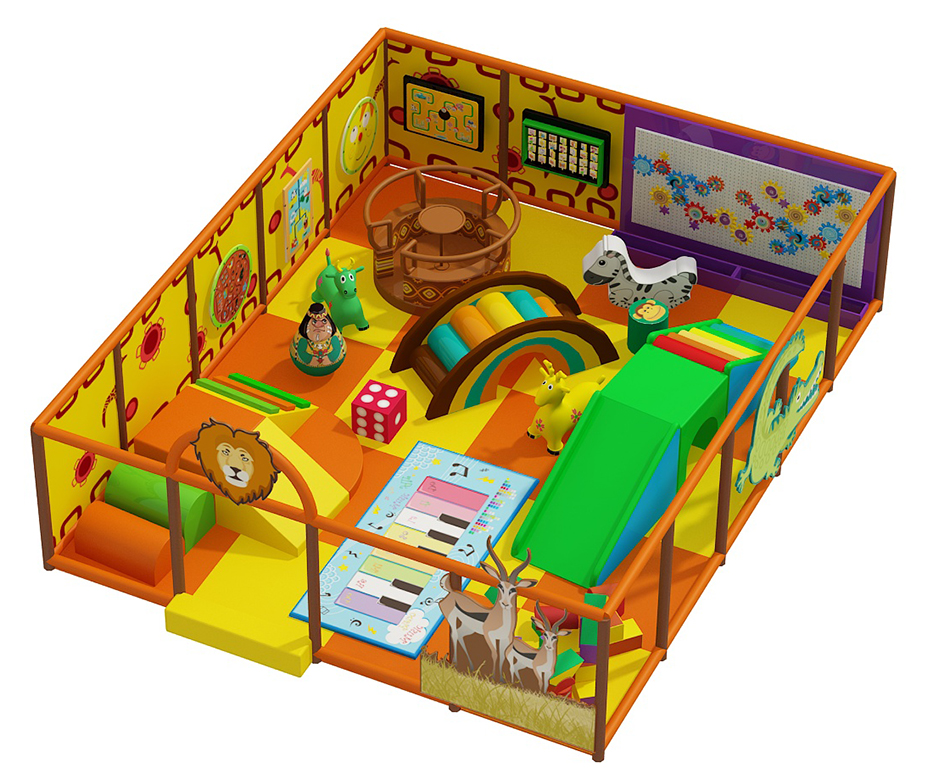

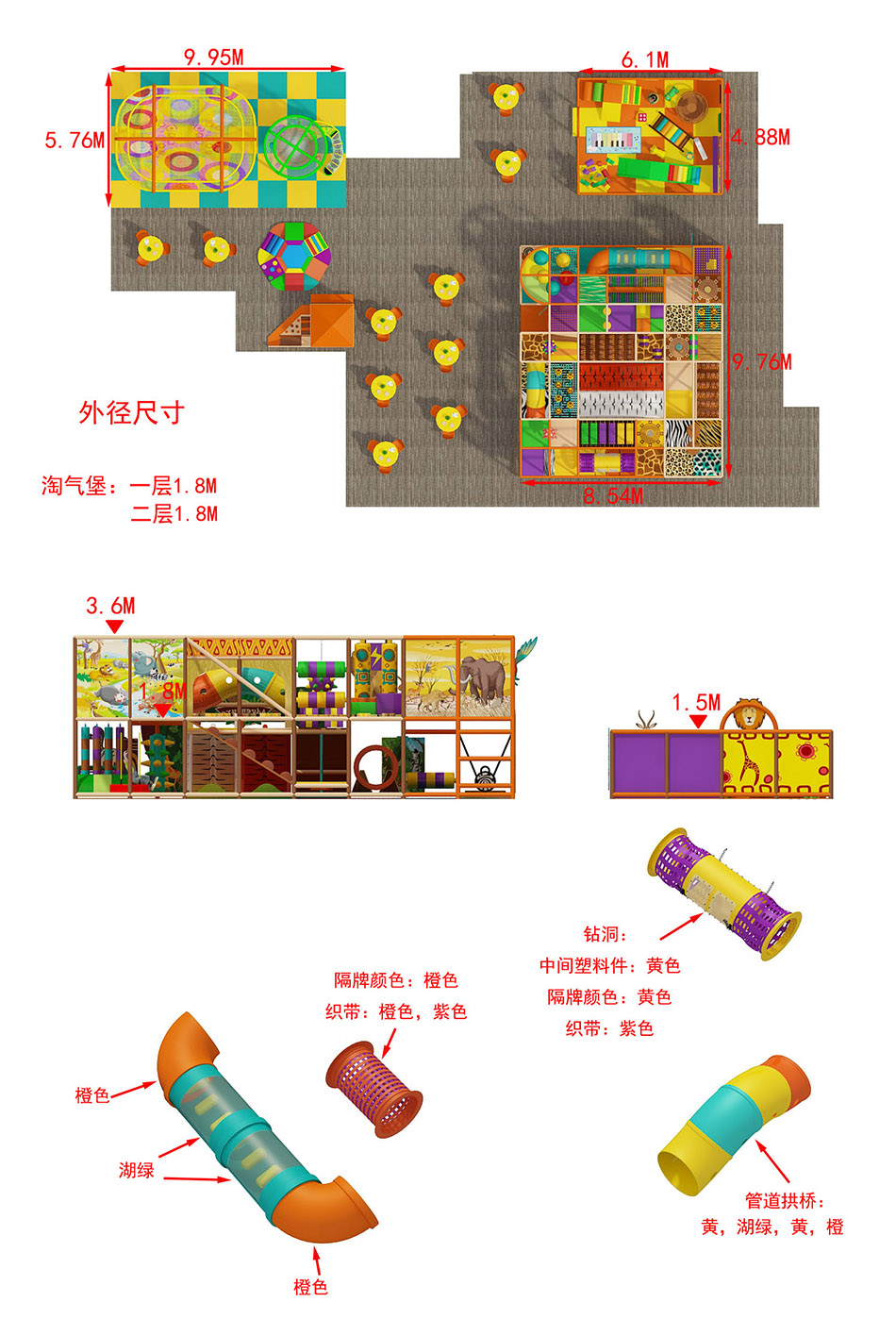

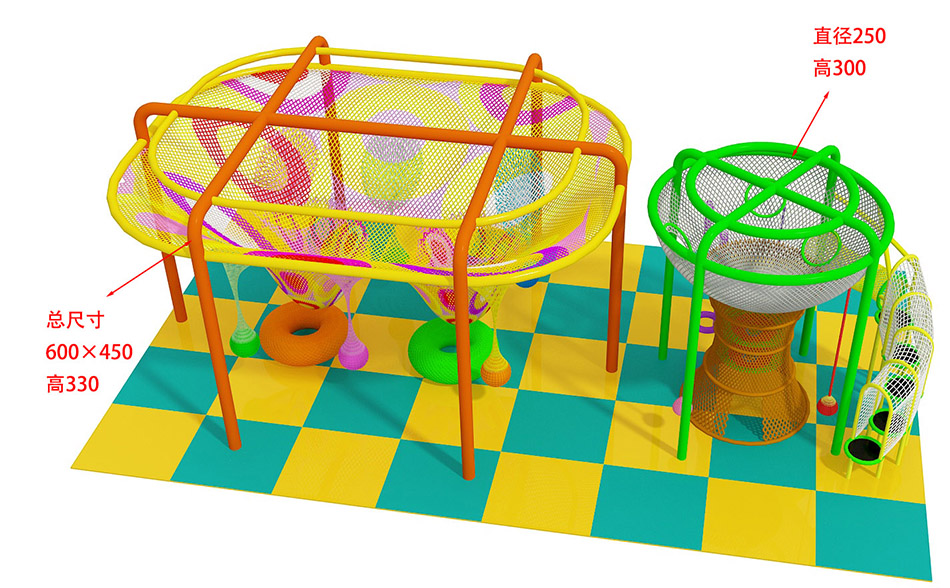

The drawing shows distinct areas, but their exact purpose must be confirmed with the equipment list. They may have different user limits and operating requirements.
Decide how families move between them and where staff can observe each area. Keep the intended separation clear when adapting the layout to your room.
Compare the 61.5 × 32.8 × 9.2 ft catalog model with the usable part of your room. Include obstructions, access doors and ceiling services in the measurements; a total floor-area figure alone leaves those constraints out.
Ask the design team to place the equipment and its required access space on that plan. Resolve conflicts before production, and obtain a revised drawing if a component or route needs to move.
Ask for a quote tied to the approved BJ-B1618 drawing. Identify the exact equipment, optional features and furnishings, and show which work your local contractors must provide.
Request separate lines for transport, unloading, assembly and site preparation. Confirm who handles each item and keep optional upgrades separate so changes remain easy to track.
Use the indoor playground planning guide to organize your site details. Review the indoor playground cost guide when checking the scope of a quotation.

Indoor playground concept with a main framed structure, separate floor activities and seating. Confirm the supplied configuration in the final equipment quote.
